Description

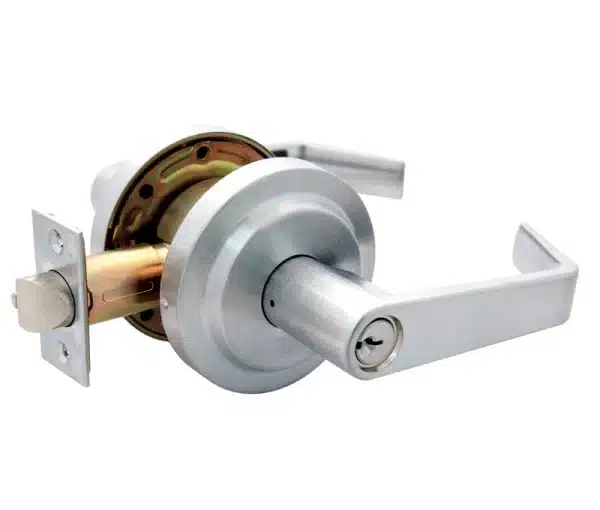

The LSDA Grade 2 Entry Lever Vancouver Clutch (Model 105661 – C800VA26D SC4 2-3/4UL) offers a robust and stylish lockset tailored for entry doors in commercial and residential environments. With its satin chrome finish, UL fire rating, and advanced clutch mechanism, it provides enhanced security and reliable performance.
Key Features:
- Secure Keyed Entry Functionality: Offers keyed access from the exterior with a convenient thumb-turn for interior operation.
- Vancouver Clutch Mechanism: Provides added protection against forced entry, enhancing security.
- 6-Pin Schlage C Keyway: Compatible with Schlage systems, allowing for easy rekeying and integration with existing key systems.
- Satin Chrome Finish: Modern and sleek appearance, resistant to corrosion and wear for long-lasting durability.
- Grade 2 Durability: Meets ANSI/BHMA standards for medium-duty commercial and heavy-duty residential use.
- UL Fire Rated: UL listed for 3-hour fire-rated openings, ensuring safety and compliance with building codes.
- Universal Fit: Features a 2-3/4″ backset and compatibility with doors 1-3/8″ to 1-3/4″ thick.
- Reversible Design: Suitable for left-handed and right-handed doors for versatile installation.
Specifications:
- Model: 105661 – C800VA26D SC4 2-3/4UL
- Function: Keyed Entry
- Grade: 2 (Medium-Duty Commercial/Heavy-Duty Residential)
- Finish: Satin Chrome
- Keyway: Schlage C (6-Pin)
- Backset: 2-3/4″
- Door Thickness Compatibility: 1-3/8″ to 1-3/4″
- Fire Rating: UL listed for 3-hour fire-rated openings
- Handing: Reversible for left-handed and right-handed doors
